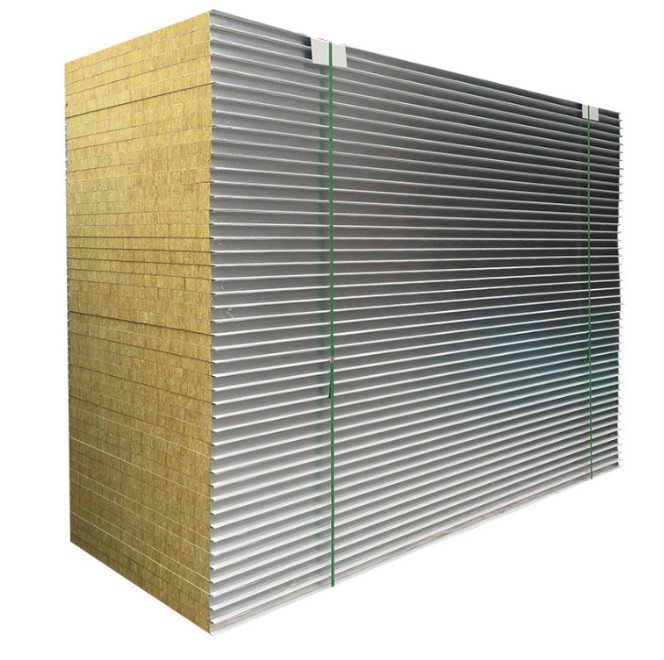

External Wall Insulation Class A Fire Retardant Rock wool Sandwich
Board
1.Product introduction
Upper and lower surfaces: galvanized color steel plate, can also be
used according to customer's specific requirements, aluminum plated
zinc color steel plate or galvanized steel plate.
Rock wool core material: rock wool blocks are staggered laying, and
the fibers are perpendicular to the upper and lower surfaces of the
sandwich board, and closely connected to enrich the entire vertical
and horizontal surfaces of the sandwich board. Between rock wool
blocks and between rock wool and the upper and lower steel plates
through high strength foaming agent bonding to form a whole,
sophisticated production technology to ensure that high density
rock wool insulation body and metal plate inner wall can produce
strong adhesion, so that rock wool sandwich board has good
stiffness.
2.Characteristics
Excellent fire performance: rock wool sandwich board using raw
materials, production process and formula, so that it has good fire
performance. Tests show that it has a fire resistance of more than
1000°C.
Good thermal insulation: the thermal insulation performance of rock
wool sandwich board is based on the thermal conductivity of rock
wool =0.043W/㎡K, calculated by the corresponding proportion of the
thickness of rock wool core material.
Thermal insulation and sound absorption effect is significant: rock
wool sandwich board has a significant reduction in noise
transmission, especially suitable for designated flights through
the place. In addition, after the use of rock wool roofing board,
rain and hail impact on the roof steel plate of the building caused
by indoor sound, also significantly weakened.
Good stiffness: Because the rock wool core material and two layers
of steel plate bond into a whole, work together, plus the roof
plate on the surface of the wave pressure type, the overall steel
is far better than the pressure type plate sandwich rock wool
(glass fiber wool) field composite plate.
3.Specification
item | value |
| 5 years |
After-sale Service | Online technical support, Other |
Project Solution Capability | total solution for projects, Others |
Panel Material | Metal |
Product Name | Rock Wool Sandwich Board |
Function | Thermal Insulation |
Type | Cold and Heat Resistant |
Material | Rock Wool |
Core density | 40-120kg/m3 (50-70kg/m3 commonly used) |
4.Scope of application
Widely used in steel structure workshop, simple mobile room roof,
wall, air clean room ceiling and partition.
5.FAQ
(1) who are we?
We are based in Chongqing, China, start from 2015,sell to Southeast
Asia(20.00%),North America(10.00%),South
America(10.00%),Eastern Europe(10.00%),Africa(10.00%). There are
total about 51-100 people in our office.
(2) How can we guarantee quality?
Always a pre-production sample before mass production;Always final
Inspection before shipment;
(3) what can you buy from us?
Heat preservation,Material,Duct insulation,The walls are filled
with cotton,Steel structure insulation and others.
(4) why should you buy from us not from other suppliers?
Our company is a professional company specializing in research and
development, production and sales of thermal insulation
materials, with a number of patents, national new technology
enterprises, with a complete and scientific quality management
system.
(5) what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card;
Language
Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Italian
6.Introduction of the company
Chongging Haike Thermal Insulation Material Co..Ltd.is located in
Yuzhong District, Chongging City. It is a national high-tech
enterprise that develops technical processes and equipment related
to glass wool manufacturing, and sells thermal insulation
materials.
It is a specialized and new enterprise in Chongging, and has a
number of inventions. Patents and utility model patents and
national computer software copvrights. and also have a complete and
scientific quality management system.
The main products sold by the company are: centrifugal glass wool
and products. formaldehyde-free environmentally friendly glass
wool,light steel structure insulation cotton, etc., and has OEM
factories in Chengdu,Sichuan,Qingyuan,Guangdong,Guangde Anhui,and
Jiulongpo District, Chongging City. With processing and storage
bases.
The company's series of products are widely used in construction
petrochemical. electronics, electric power.metallurgyautomobile
energy,aerospace. transportation and other fields,and their thermal
insulation. sound absorption and noise reduction effects are very
significant.
Over the vears, Chongging Haike Thermal Insulation Material Co.
Ltd.has been highly recognized by the industry for its integrity
strength and product quality. Friends from all walks of life are
welcome to visit, guide and negotiate business.
